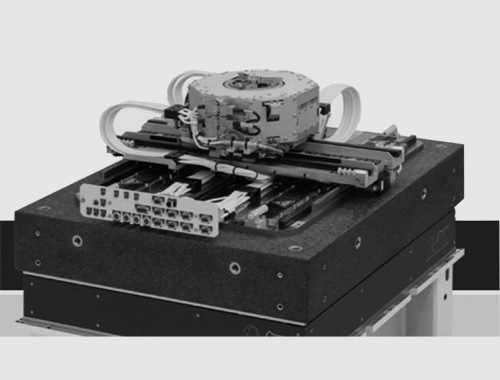

In our daily technical chats, we often meet folks who are fascinated by large scientific facilities or high-end motion control systems. Many of them have high hopes for the "compensation" feature of a Linear Encoder.

A common belief is that if you just throw enough money at a machine, install a linear encoder, and run some software compensation, its precision will automatically skyrocket. Is this idea correct? Yes, but only half right.

Today, let's sit down and tell a story to completely demystify the underlying logic of "machine compensation." What exactly is it compensating for? And under what circumstances is this investment actually worth it?

1. What Exactly Are We "Compensating" For? — Positioning Accuracy

First, we need to clarify a core concept: the "system compensation" we usually talk about specifically targets Positioning Accuracy.

What is Positioning Accuracy? Simply put, when the control "brain" commands the machine to move to a specific location, it is the gap between the actual physical spot the machine lands on and the theoretical spot it was told to go to. As long as this gap (or error) is stable and predictable, we can use software compensation to "smooth it out."

Let's look at a vivid example:
Imagine a machine always "slips" and overshoots by exactly 2 micrometers every time it travels to a specific point. Since we know its habit, we can artificially set a correction value of "-2 micrometers" in the system. It's as if the system secretly pulls the machine back right before it stops, placing it perfectly on the mark. When every point along the machine's travel path is carefully treated this way, the machine's overall positioning accuracy across its entire range will be perfectly controlled within our ideal limits.

2. What Can't Be Compensated? — Repeatability

Unlike positioning accuracy, Repeatability cannot be fixed by software programs.

What is Repeatability? It refers to the consistency of the actual stopping positions when a machine moves to the exact same target point, from the exact same direction, multiple times. In layman's terms, it tests the machine's mechanical ability to "step in the exact same footprint every single time."

We can vividly think of repeatability as the "error of the error":

If repeatability is high: This means every time the machine stops, the positions are tightly clustered and highly stable, even if the whole cluster is off-target. This is an easy fix! We just use the "compensation" method mentioned above to drag the entire cluster right into the bullseye.

If repeatability is poor: Then we are completely out of luck! This means the machine's stopping points are randomly swaying—left, right, and center—with zero pattern. Faced with this, software compensation has no idea what to do.

3. Under What Circumstances Does Compensation Actually Make Sense?

Based on our analysis above, we can draw a crucial conclusion for the motion control field:

The absolute prerequisite for system compensation to work is that the machine's foundational "Repeatability" must be highly stable.

If engineers map out the machine's error curve during testing and it looks like this—the error value at each test point is consistent, and the entire curve is smooth, stable, and predictable—then congratulations! Applying compensation here is incredibly valuable.By precisely correcting the errors point by point, not only will the machine's overall precision take a massive leap, but it will also maintain this excellent condition for a long time.

Why does adding a linear encoder ensure long-term stability?

Because a linear encoder is an ultra-precise optical measurement system. Unlike traditional mechanical drivetrain parts, it experiences almost zero mechanical wear and tear. As long as it is installed correctly and the physical environment of the factory  is normal, the position signals it sends out will remain highly accurate day after day. This means the precision we painstakingly achieved through compensation is firmly "locked in" by the linear encoder and won't easily suffer from drift over time.

4. What is the True Value of a Linear Encoder?

Having sorted out this logic, we can clearly see the core role of a linear encoder in high-end machinery:

Accurate Monitoring: It acts as an incredibly sharp pair of "eyes" on the machine, capable of feeding back the absolute, true, and real-time physical position of the workbench to the control brain without any bias.

Supporting Effective Compensation: Provided the machine's own mechanical structure (repeatability) performs stably,these "eyes" continuously provide absolutely reliable error data to the brain, allowing the compensation software to actually work its magic.

Long-term Precision Retention: Thanks to its physical nature of zero mechanical wear, the linear encoder acts like an anchor, durably and stably maintaining that peak high-precision state achieved after compensation.

5. Conclusion

A compensation system is definitely not a cure-all.It can only help improve Positioning Accuracy, but is completely helpless against poor Repeatability caused by inherent mechanical weaknesses. Only when the machine's mechanical foundation is solid enough—meaning every movement can be stably reproduced—can adding a linear encoder and running system compensation truly cause a qualitative leap in the machine's processing capabilities, allowing that peak performance to stand the test of time.
